Tangled knotmirror: SSRF via User-Controlled Knot URL

May 17, 2026

Status: Fixed in v1.14.0-alpha
Fixed by: PR #1497
Discovered by: Anatolij Vasilev (tolik518)
Last vulnerable version/state: v1.13.0-alpha / main@ba18ec20d332069db4e1c187f28191fb0d9ef2ed
Disclosure status: Reported to maintainers before publication
CVE: pending / not assigned

0. Summary

Anyone with an account on any AT Protocol server can access HTTP servers on localhost of the tangled instance. The root cause is that the knotmirror proxy trusts a user-supplied field (knot) from an AT Protocol record as a literal URL, then makes an outbound HTTP GET to it from the mirror server itself.

By pointing that field (for example) at http://127.0.0.1:7200/repos, the server fetches its own unauthenticated internal admin panel and returns the response to the attacker. That way the attacker can access any internal HTTP services like Admin panels, Grafana dashboards or any other service that is not protected by authentication but only by network isolation.

Confirmed via limited proof-of-concept test against production on 2026-05-08. No destructive actions were performed. Accessed data contained no secrets, no PII and was minimized and not redistributed.

Affected:

  • knotmirror proxy fallback path
  • user-controlled record.Knot values
  • localhost HTTP services reachable from the mirror host

Not confirmed / not part of this finding:

  • direct database access
  • arbitrary non-HTTP protocol interaction
  • compromise of user data

1. Background / Discovery notes

At work I got the task to audit multiple repositories for security issues. With all the hype around mythos we've decided to do an AI-assisted code review.
This got me interested to also take a look into some open source repositories! Some days prior I've stumbled upon tangled, an open-source, decentralized git forge built on top of the AT Protocol (known for powering Bluesky). So tangled it was the perfect candidate for me to poke a little bit around!

I've started to look into the codebase manually first (I decided against using an agent for now, as I don't have unlimited tokens). When looking into the codebase and learning a little bit about the project, I have made some small contributions.

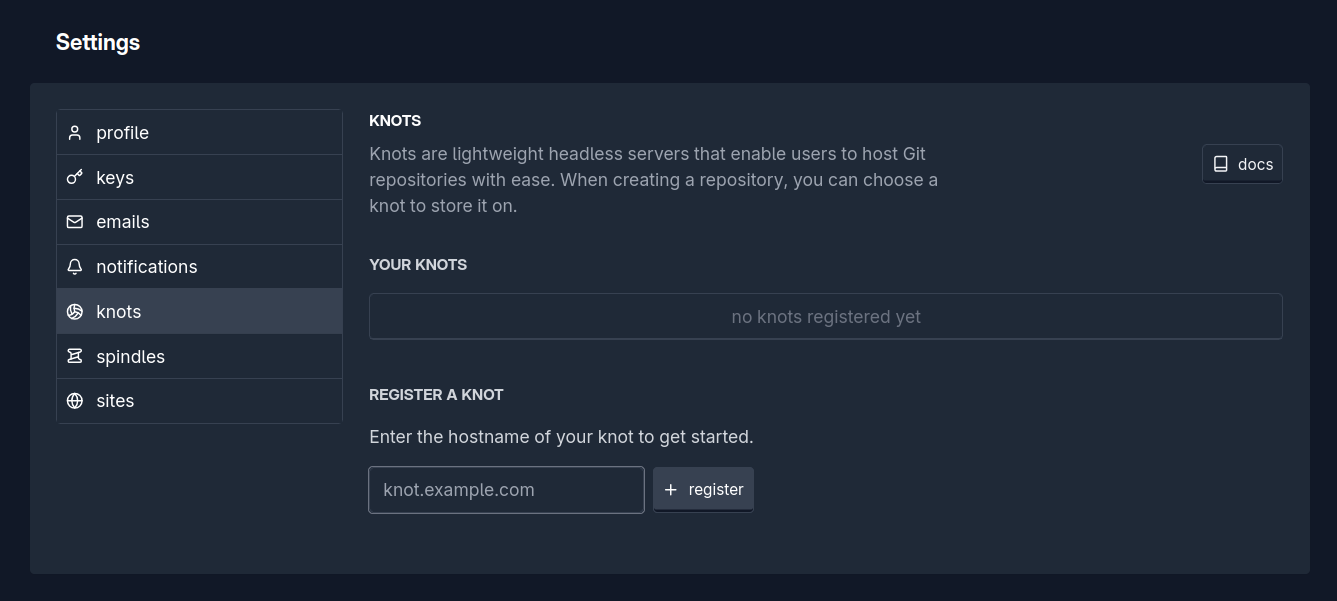

Due to the decentralized nature it is possible to host your own knot, which is basically a host that handles git-operations. After digging a little bit more into it I've also found out that it's possible to use localhost as a knot. This means that the production tangled server would try to reach its own localhost. This could be a potential SSRF condition. Since the infrastructure of the tangled server is somewhat transparent through the monorepo and additionally through the infra-repo I knew where to look next.

This is where I got too impatient to continue manually though and I got myself a Claude Pro license for a month and installed the claude cli. Giving the agent all the information I've had it gave me a possible attack vector with a proof of concept, which I then manually verified and Bingo! I (we?) found a critical vulnerability!

2. Affected Code

1. Proxy URL construction — no validation on record.Knot

knotmirror/xrpc/proxy.go:117

target := fmt.Sprintf("%s/xrpc/%s?%s", knot.baseURL, knotNSID, params.Encode())

knot.baseURL is taken directly from the AT Protocol repo record's knot field:

knotmirror/xrpc/proxy.go:78

knotURL := record.Knot
if !strings.Contains(record.Knot, "://") {
    // only adds scheme if missing — full URLs pass through unchanged
}

If record.Knot = "http://127.0.0.1:7200/repos?junk=", the constructed target is:

http://127.0.0.1:7200/repos?junk=/xrpc/sh.tangled.repo.branches?repo=did%3Aplc%3A...

Go's HTTP client parses this as path /repos with query string junk=.... The chi router on the admin panel matches /repos, ignoring the unknown junk query parameter.

2. Unauthenticated admin panel

knotmirror/adminpage.go:40-48

func (s *AdminServer) Router() http.Handler {
    r := chi.NewRouter()
    r.Get("/repos", s.handleRepos())    // no auth middleware
    r.Get("/hosts", s.handleHosts())    // no auth middleware
    r.Post("/api/triggerRepoResync", s.handleRepoResyncTrigger())   // no auth
    r.Post("/api/cancelRepoResync", s.handleRepoResyncCancel())     // no auth
    return r
}

knotmirror/knotmirror.go

logger.Info("starting admin server", "addr", cfg.AdminListen)
if err := http.ListenAndServe(cfg.AdminListen, adminpage.Router()); err != nil {
    logger.Error("admin server failed", "error", err)
}

The admin server binds only to 127.0.0.1 (configured as adminListenAddr = "127.0.0.1:7200" in the NixOS service config), relying on network isolation as its only protection. The proxy SSRF bypasses this entirely - the mirror machine makes the outbound HTTP request to its own loopback interface.

3. Mitigation / Fix

The issue was fixed in PR #1497 by adding SSRF protection and validating the knotURL.

func validateKnotURL(raw string) (string, error) {
	u, err := url.Parse(raw)
	if err != nil {
		return "", fmt.Errorf("invalid knot URL: %w", err)
	}
	if u.Scheme != "http" && u.Scheme != "https" {
		return "", errors.New("knot URL must use http or https scheme")
	}
	if u.Path != "" && u.Path != "/" {
		return "", fmt.Errorf("knot URL must not contain a path: %q", raw)
	}
	if u.RawQuery != "" || u.Fragment != "" {
		return "", fmt.Errorf("knot URL must not contain query or fragment: %q", raw)
	}
	if u.User != nil {
		return "", fmt.Errorf("knot URL must not contain userinfo: %q", raw)
	}
	// Strip trailing slash for consistent formatting
	return strings.TrimRight(u.String(), "/"), nil
}

After the PR was merged a new release v1.14.0-alpha was created and deployed.

Here is the last vulnerable state of the repo: ba18ec20d332069db4e1c187f28191fb0d9ef2ed

4. Retest

After v1.14.0-alpha was deployed, the original payload no longer returned the internal HTTP/admin panel response. The public endpoint returned only:

{"error":"InternalServerError","message":"failed to list branches"}

5. Timeline

Date Event
2026-05-08 Vulnerability discovered during AI assisted code review
2026-05-08 Limited proof-of-concept confirmed against mirror.tangled.network
2026-05-08 Report send to oppi.li
2026-05-10 Report send to security@tangled.org
2026-05-13 PR was created, merged and deployed
2026-05-18 Public responsible disclosure
